Description

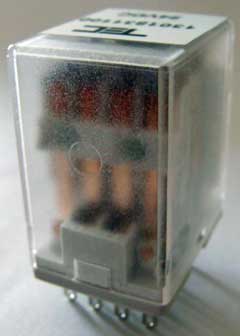

Instantaneous relay 4 RT / 6 A.
2RT / 10 A. version available by clicking HERE.
Pluggable on front wiring socket (9350), rear wiring socket with clips (9360) or rear wiring socket for PCB mounting (9370)
Detailed table of coil resistance data is available in the technical support pages of this site or can be sent upon request.
2RT / 10 A. version available by clicking HERE.
Pluggable on front wiring socket (9350), rear wiring socket with clips (9360) or rear wiring socket for PCB mounting (9370)
Detailed table of coil resistance data is available in the technical support pages of this site or can be sent upon request.
Dimensions
Connection
Technical features
| Function | Instantaneous |
| Presentation | under cover |
| Connection | on front or rear wiring sockets |
| Number of mechanical operations | 10.000.000 |
| Operating temperature | AC : -40 to +55°C - DC : -40 to +70°C |
| Storage temperature | - 40°C to + 80°C |
| Climatic protection | reinforced climatic protection |
| Shock voltage | 2.5 KV wave 1,2/50 microseconds |
| Dielectric strength | Contact/contact : 1,5 KV - coil : 2 KV |
| Insulation resistance | > 1.000 MOhms (500 VDC new relay) |
| Weight | 35 g. |
Coil data
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 6 V | 6 V | |
| Min. nominal voltage AC | 220 V | 230 V - 50/60 Hz | |
| Operating range | -20/+10% of nominal voltage | ||
| Power requirement | 0,9 W | 2 VA | 1,6 VA |
Contacts
| Number of contacts | 4 inv |
| Max. load current | 6 A per contact |
| Low power switching | 300 mW with I min 5 mA |
| Short-circuit load | 100 A / 30 ms |
| Response time (bounce time not included) | DC < 13 ms - AC < 14 ms |
| Bounce time | DC < 3 ms - AC < 8 ms |
Contacts rating
| DIRECT CURRENT | ||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
Versions
CODE VERSIONS
0 none
1 mechanical indicator
2 mechanical indicator + locking test
3 idem + LED+ en 13
4 idem + Diode+ en 13
5 idem + LED+ en 13 + Diode+ en 13
6 mechanical indicator + LED+ en 13
0 none
1 mechanical indicator
2 mechanical indicator + locking test
3 idem + LED+ en 13
4 idem + Diode+ en 13
5 idem + LED+ en 13 + Diode+ en 13
6 mechanical indicator + LED+ en 13
7 mechanical indicator + Diode+ en 13
For any complementary information, please contact us.
WARNING : 1301 relay is also available in 2 RT/10 A.
For any complementary information, please contact us.
WARNING : 1301 relay is also available in 2 RT/10 A.
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
