Description

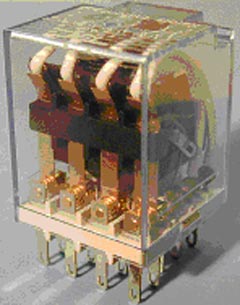

Instantaneous relay 4 CO contacts.
Pluggable on front wiring socket (9946) or rear wiring socket (9266)
The detailed table of coil resistance data is available in the technical support pages of this site or can be sent upon request.
Pluggable on front wiring socket (9946) or rear wiring socket (9266)
The detailed table of coil resistance data is available in the technical support pages of this site or can be sent upon request.
Dimensions
Connection
Technical features
| Function | Instantaneous |
| Presentation | under cover |
| Connection | on front or rear wiring sockets |
| Number of mechanical operations | 10.000.000 |
| Operating temperature | - 10 to + 40°C |
| Storage temperature | - 40°C to + 85°C |
| Climatic protection | reinforced climatic protection |
| Shock voltage | 15 g - 11 ms |
| Dielectric strength | 2,5 KV-50 Hz-1 min at 40°C and 70% HR |
| Insulation resistance | 200 MOhms |
| Weight | 73 g. |
Coil data
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 6 V | 6 V | |
| Min. nominal voltage AC | 220 V | 400 V | |
| Operating range | -15/+10% of nominal voltage | ||
| Power requirement | 2,2W | 5 VA | 3 VA |
Contacts
| Number of contacts | 4 RT |
| Max. load current | 8 A per RT |
| Low power switching | 40 mA min for 6 V |
| Short-circuit load | 250 A / 30 ms |
| Response time (bounce time not included) | DC < 12 ms - AC < 17 ms |
| Bounce time | < 7 ms |
Contacts rating
| DIRECT CURRENT | ||||||
|
||||||
| ALTERNATIVE CURRENT | ||||||
|
||||||
Versions
Available in "SECURITY RELAY" version with linked contacts - Please contact us.
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
