Timing adjustable in 3 ranges from 0.6 to 600 sec.
Ranges selection by strapp on the basis.
Time selection by potentiometer on front face.
See operation diagram hereafter.
1831-1832
Description
Timer module, based on an electronic technology grouping components ensuring timing and counting functions and controlling an output relay type GE or 1804.
Timer module on opening (O) : 1832
Timer module on closing (F) : 1831
Pluggable on following sockets : 9876, 9877, EVB/GE, EVC/GE, ER/GE 2,8 ou ER/GE.
Timer module on opening (O) : 1832
Timer module on closing (F) : 1831
Pluggable on following sockets : 9876, 9877, EVB/GE, EVC/GE, ER/GE 2,8 ou ER/GE.
Dimensions
Connection
Operation principle
Timer under plastic cover grouped with an intantaneous relay type GE / GFN or 1804 - Qualified EDF HN45S30 :Timing adjustable in 3 ranges from 0.6 to 600 sec.
Ranges selection by strapp on the basis.
Time selection by potentiometer on front face.
See operation diagram hereafter.
Technical features
| Function | timer |
| Presentation | under cover |
| Connection | on front or rear wiring socket or on PCB |
| Operating temperature | - 10 to + 55°C |
| Storage temperature | - 40°C to + 80°C |
| Climatic protection | reinforced climatic protection |
| Protection level | IP50 |
Coil data
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 24 V | 24 V | |
| Min. nominal voltage AC | 125 V | 125 V | |
| Power requirement | 1,8 W | ||

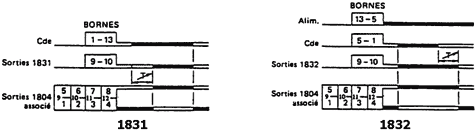

Operation diagram
FONCTIONS
Versions
For any complementary information regarding mounting of withdrawal, please refer to the technical support pages of this site or contact us.
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
