Description
Multifunction & multirange timer relay - 2 timed contacts - 5 A.
Pluggable on front wiring socket (9705) or rear wiring socket (9723)
Pluggable on front wiring socket (9705) or rear wiring socket (9723)
Dimensions
Connection
Operation principle

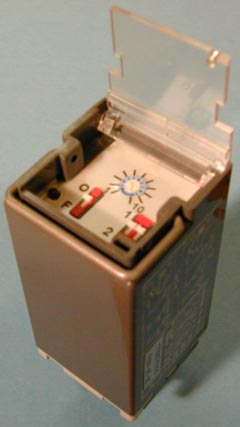

Timing function selector on front face ("F" on closing - "O" on opening)
Timing range selector on front face (0,6 - 6", 6 - 60", 60 - 600").
Visualisation of the output state by LED.
Protection of the selections by front closable cover.
See the operation scheme here after.
Timing range selector on front face (0,6 - 6", 6 - 60", 60 - 600").
Visualisation of the output state by LED.
Protection of the selections by front closable cover.
See the operation scheme here after.
Plan
Technical features
| Function | timer multifunction/multirange |
| Presentation | under cover |
| Connection | on front or rear wiring socket |
| Number of mechanical operations | 30.000.000 |
| Operating temperature | - 25 to + 55°C |
| Storage temperature | - 40°C to + 80°C |
| Climatic protection | reinforced climatic protection |
| Shock voltage | 50 g - 11 ms |
| Dielectric strength | 2.500 V - 50 Hz |
| Insulation resistance | 1.000 MOhms (500 VDC new relay) |
| Weight | 130 g. |
Coil data
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 12 V | 220 V | |
| Min. nominal voltage AC | 127 V | 220 V | |
| Operating range | -20/+10% of nominal voltage | ||
| Power requirement | max. 4 VA | ||
Contacts
| Number of contacts | 2 |
| Max. load current | 5 A per contact |
| Low power switching | 0,1 VA with min. voltage 5 V or I min 10 mA |
| Short-circuit load | 100 A - 30 ms |
| Response time (bounce time not included) | DC : 20 ms - AC : 20 ms |
| Bounce time | 100 ms |
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
