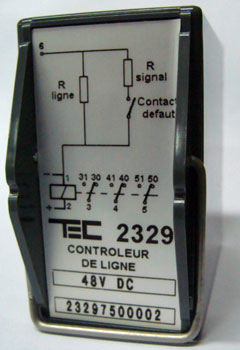

2329
Description
Relay for line control - 3 output relays with 250 VAC/5 A CO contacts.
Pluggable on the following sockets : 9244, 9246, 9243 & 9946.
Detailed table of the coil resistance data is available in the technical support pages of this site or can be sent upon request.
Pluggable on the following sockets : 9244, 9246, 9243 & 9946.
Detailed table of the coil resistance data is available in the technical support pages of this site or can be sent upon request.
Encombrement
Principe de fonctionnement
Control the condition of the line between the control circuit (dry contact type) and the control device.
2329 relay acts as an interface
The three output CO contacts give:
* 1 default for the line in short-circuit (with visualisation by LED)
* 1 default for th eopen line (with visualisation by LED)
* 1 line contact putting off.
The relay used for default type indication and contact position checks permanently the line impedance between terminals n° 1 and 6..
The line impedance to control must be less than 3000 Ohms.
2329 relay acts as an interface
The three output CO contacts give:
* 1 default for the line in short-circuit (with visualisation by LED)
* 1 default for th eopen line (with visualisation by LED)
* 1 line contact putting off.
The relay used for default type indication and contact position checks permanently the line impedance between terminals n° 1 and 6..
The line impedance to control must be less than 3000 Ohms.

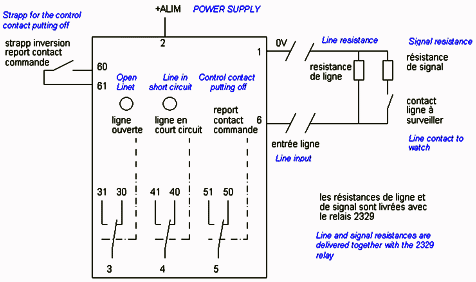

Schéma de principe
Caractéristiques
| Fonction | line control |
| Présentation | under cover |
| Raccordement | on front or rear wiring socket |
| Température de fonctionnement | - 10 to + 55°C |
| Température de stockage | - 20 to + 70°C |
| Masa | 130 g |
Bobine
| Courant continu | Courant alternatif | ||
| Tension nominale mini. | 24 V | 24 V | |
| Tension nominale maxi. | 220 V | 220/230 V | |
| Domaine d'action | -15 à 10% of nominal voltage | ||
Contactos
| Número de contactos | 2 |
| Courant permanent maxi. admissible | 5 A per contact |
Versions
For any complementary information regarding mounting and withdrawal, please refer to the technical support pages of this site or contact us.
