7R0420
Weight : 10 g.
Power supply : 6 to 48 VDC
Description
LINEAR MINIATURE SOLENOID FOR LITTLE MECHANISMS
Power requirements
• Direct current
Duty cycle |
100 % |
25 % |
10 % |
Nominal power |
1,2 W |
- |
12 W |
Performances
• Direct current |
![](../_upload/ressources/electro-aimant/ea_miniatures/7r0420_courbe.gif) |

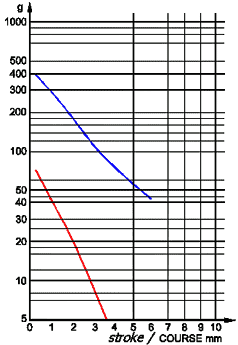

In blue = duty cycle 10% nominal voltage cold coil / in red = duty cycle 100% min. voltage hot coil |
Dimensions
• Direct current |
7R0420 - front view |
|
7R0420 - back biew |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../_upload/ressources/electro-aimant/ea_miniatures/7r0420_enc_front_view.gif) |
|
![](../_upload/ressources/electro-aimant/ea_miniatures/7r0420_enc_back-view.gif) |
|
Technical features
Connection |
Solder terminals |
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
