7P23
Weight : 250 g.
Power supply : 6 à 220 VDC
Description
ELECTRO-AIMANT LINEAIRE AVEC PALIERS POUR APPLICATIONS INTENSIVES
MODELES :
. Tirant
. Poussant
. Traversant
Power requirements
• Direct current
Duty cycle |
100 % |
25 % |
5 % |
Nominal power |
7 W |
20 W |
65 W |

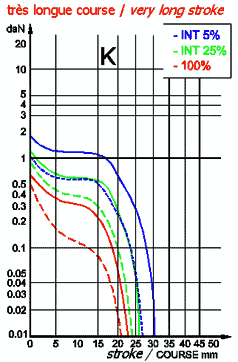

Performances
• Direct current |
![](../_upload/ressources/electro-aimant/ea_paliers/7p23_courbe.gif) |
——– U. nominal bobine froide / - - - - U. mini. bobine chaude |
Dimensions
• Direct current |
7P23 - modèle tirant |
|
7P23 - modèle poussant |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../images/spacer.gif) |
![](../_upload/ressources/electro-aimant/ea_paliers/7p23_enc_tirant.gif) |
|
![](../_upload/ressources/electro-aimant/ea_paliers/7p23_enc_poussant.gif) |
|
Technical features
Connection |
Sur fils longueur 200 mm |
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
