Electro-aimants et ventouses
Print the card
7323
Weight : 40 g.
Power supply : 6 to 220 VDC
Description
LINEAR SOLENOID "U" FORM FOR BASIC APPLICATIONS
TYPES :
. Pull type
. Push type
. Through type
:. Pull type. Push type. Through type
TYPES :
. Pull type
. Push type
. Through type
:. Pull type. Push type. Through type
Power requirements
• Direct current
| Duty cycle | 100 % | 25 % | 5 % |
| Nominal power | 2,6 W | 5,8 W | 18 W |

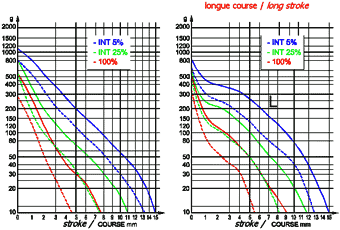

Performances
• Direct current |
 |
| ——– nominal voltage cold coil / - - - - min. voltage hot coil |
Dimensions
|
Technical features
| Connection | On wires (length 60 mm) |
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
