7134

Weight : 150 g.

Power supply : 6 to 220 VDC - 6 to 230 VAC

Description

LINEAR SOLENOID "D" FORM FOR CURRENT APPLICATIONS

TYPES :

. Pull type
. Push type
. Through type

:. Pull type. Push type. Through type

Power requirements

• Direct current

Duty cycle 100 % 25 % 5 %
Nominal power 5,5 W 14 W 52 W

• Alternative current

Duty cycle 100 % 25 % 5 %
Nominal power 8,5 VA 25 VA 86 VA

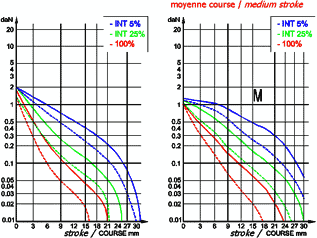

Performances

• Direct current



• Alternative current

——– nominal voltage cold coil / - - - - min. voltage hot coil   ——– nominal voltage cold coil / - - - - min. voltage hot coil

Dimensions

• Direct current
7134 - pull type   7134 - push type


• Alternative current
7134 - pull type   7134 - push type


Technical features

Connection Snap for clips (4,75x0,5 or 2,8x0,5) - On wires length 110 mm

Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
