* sec : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
* min : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
* h : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
Visualisation by red state LED and green voltage presence LED.
See the operation diagram hereafter.
!! any modification of the choice of the form or of the multiplier of a timing in use will be validated only after a power supply break !!
2820
Description

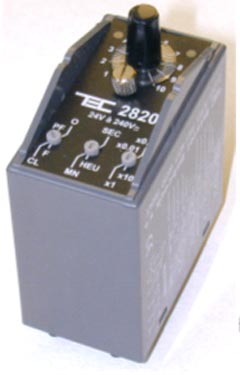

Universal timer relay - 2 contacts.
Pluggable on the following sockets : 9946, 9244, 9246.
Pluggable on the following sockets : 9946, 9244, 9246.
Dimensions
Connection
Operation principle
Timing ranges :* sec : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
* min : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
* h : 0.01-0.1 / 0.1-1 / 1-10 / 10-100
Visualisation by red state LED and green voltage presence LED.
See the operation diagram hereafter.
!! any modification of the choice of the form or of the multiplier of a timing in use will be validated only after a power supply break !!
Plan
Technical features
| Function | timer (F, O, CL, PF) |
| Presentation | under cover |
| Connection | pluggable on front or rear wiring socket |
| Number of mechanical operations | 10.000.000 |
| Operating temperature | - 20 to + 60°C |
| Storage temperature | - 25°C to + 70°C |
| Climatic protection | reinforced climatic protection |
| Weight | 150 g. |
| Protection level | IP40 |
| Operate time | reset time after timing : 10 ms |
| Release time | reset time after voltage break : 30 ms |
Coil data
| Direct current | Alternative current | ||
| Min. nominal voltage DC | 24 V | 24 V | |
| Min. nominal voltage AC | 240 V | 240 V - 50 or 60 Hz | |
Contacts
| Number of contacts | 2 |
| Max. load current | 10 A |
Versions
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
