Print the card
7434
Weight : 30 g.
Power supply : 6 to 48 VDC
Description
LINEAR TUBULAR SOLENOID FOR RADIAL FASTENINGS
TYPES :
. Pull type
. Push type
:. Pull type. Push type
TYPES :
. Pull type
. Push type
:. Pull type. Push type
Power requirements
• Direct current
| Duty cycle | 100 % | 25 % | 5 % |
| Nominal power | 2,4 W | 4,7 W | 15 W |

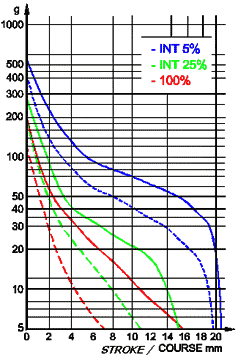

Performances
• Direct current |
 |
| ——– nominal voltage cold coil / - - - - min. voltage hot coil |
Dimensions
|
Technical features
| Connection | On wires length 60 mm |
Non-contractual document - characteristics to be confirmed before order
TEC AUTOMATISMES reserves the right to modify description and specifications without notice
